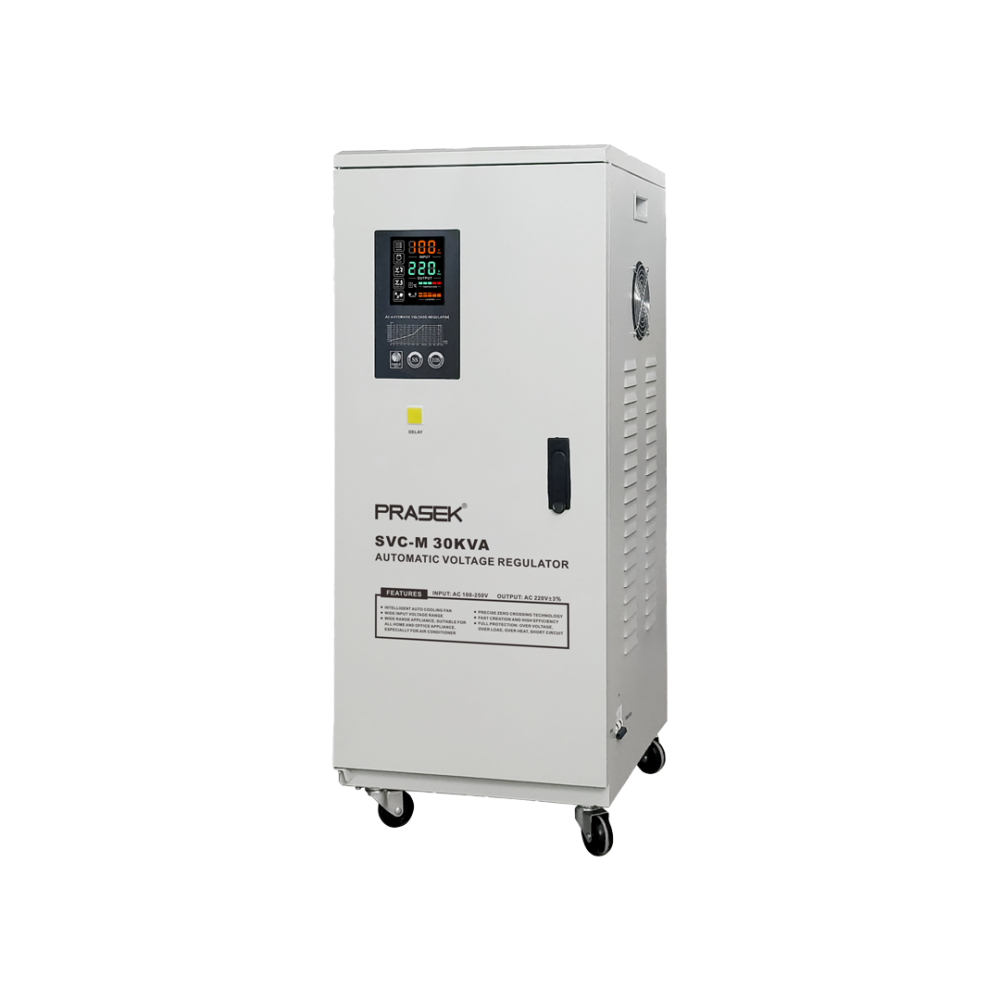

SVC-M 30KVA ESTABILIZADOR SERVO. C/ PANTALLA DIGITAL 30000W “PRASEK”

Descripción

SVC-M 30KVA ESTABILIZADOR SERVO. C/ PANTALLA DIGITAL 30000W “PRASEK”

• Control Type: servo motor control
• Maximum loading capacity: 24KW
• Efficiency: ≥90%
• Input voltage range: 100-250V
• Output voltage: 220V+/-3%
• Input Frequency: 50-60Hz
• Delaying time: short 5s /long 180s
• Display: LED
• Bypass function: yes
• Electrical surge suppression function: no
• Over voltage Protection: When output voltage’s at 246V+/-4V, the
  output will be cut off and show «H» on display
• Low Voltage Protection: When output voltage’s at 170V+/-4V, the
  output will be cut off and show «L» on display
• Over Temperature Protection: When temperature’s at 50º C+/-5º C，
  the fan will work; when temperature’s at 115ºC+/-5ºC，the output
  will be cut off and show «C» on display
• Over Current Protection: When working current ≥ 110% of rating
  current, the output will be cut off and show «O» on display
• Insulation Resistance: ≥10MΩ
• IP Grade: IP20
• Grounding Resistance: ≤0.1 Ohm
• Machine Struture: Vertical type
• Working Environment Altitude: ≤3000M
• Working Environment Temperature: ‘-5ºC to 45ºC
• 2 Ventiladores para una mejor disipación
• Product Dimension W*D*H（cm): 36*42.2*89.3
• NW (KG): 98
